CANDY – IBERNA – HOOVER

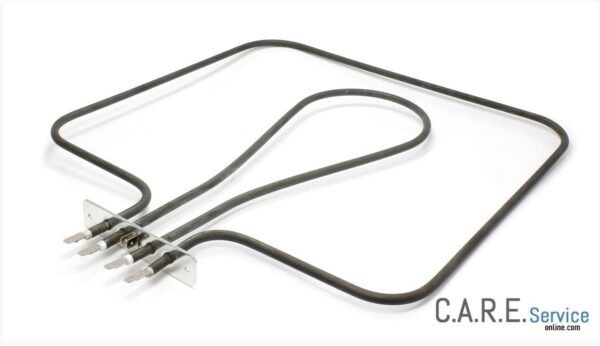

Resistenza doppia inferiore per Forno elettrico
Codice Originale
41020672 , 41000114 – 92206127
POTENZA: 1050W + 450W
TENSIONE: 220V + 93V
LA RESISTENZA E’ COMPOSTA DA 2 RESISTENZE ALIMENTATE DA DIVERSE TENSIONI.
LA RESISTENZA CENTRALE E’ ALIMENTATA A 93V.
QUANDO MONTATE LA RESISTENZA NEL FORNO, ACCERTATEVI DI COLLEGARE I FILI CORRETTI.
Watt 1050 + 450
Volt 230 /240
Tipo apparecchio: Forno
tipo: Resistenza inferiore
potenza: 1500 W
lunghezza: 345 mm
larghezza: 340 mm
Lunghezza flangia: 100 mm
Larghezza flangia: 22 mm
Distanza connettori: 9 mm
MONTA SUI SEGUENTI MODELLI:
R433GHCR 36282192 0141 (2001-10-14) 0810 (2008-03-07) ALL MARKETS
R433RA 36282168 0404 (2004-01-21) 0810 (2008-03-07) ALL MARKETS
R433XE 36282143 0013 (2000-04-01) 0835 (2008-08-28) FRANCE
R433BA 36282119 0013 (2000-04-01) 0810 (2008-03-07) ALL MARKETS
R433GH 36282101 0013 (2000-04-01) 0813 (2008-03-27) ALL MARKETS
R433X 36282002 0013 (2000-04-01) 0813 (2008-03-27) ALL MARKETS
FCO607X 33900072 1210 (2012-03-09) 9953 (2099-12-31) GERMANY
FCO827XL 33900071 1211 (2012-03-14) 9953 (2099-12-31) ALL MARKETS
FCO405X 33900069 1130 (2011-07-28) 9953 (2099-12-31) ALL MARKETS
FPP405X 33701093 1348 (2013-11-30) 9953 (2099-12-31) U.K.
FPP6078XL 33701092 1303 (2013-01-16) 9953 (2099-12-31) ALL MARKETS
HOC709X 33701052 1228 (2012-07-12) 9953 (2099-12-31) ALL MARKETS
HCM906NPP 33701044 1228 (2012-07-11) 9953 (2099-12-31) ALL MARKETS
HO445VX 33701040 1236 (2012-09-07) 9953 (2099-12-31) ALL MARKETS
FPP206X 33701034 1214 (2012-04-02) 9953 (2099-12-31) FRANCE
FPP648WX 33701031 1227 (2012-07-06) 9953 (2099-12-31) FRANCE
FPP648NX 33701030 1227 (2012-07-06) 9953 (2099-12-31) FRANCE
FHP649X 33701029 1230 (2012-07-25) 9953 (2099-12-31) FRANCE
FP206X 33701024 1217 (2012-04-25) 9953 (2099-12-31) U.K.
RF3313IN 33701019 1239 (2012-09-28) 9953 (2099-12-31) FRANCE
FP52XV 33700995 1212 (2012-03-21) 9953 (2099-12-31) ITALY
LAM3203 33700994 1149 (2011-12-06) 9953 (2099-12-31) ALL MARKETS
FPP629NX 33700993 1215 (2012-04-15) 9953 (2099-12-31) ALL MARKETS
FPP603NX 33700992 1217 (2012-04-27) 9953 (2099-12-31) ALL MARKETS
FPP435X 33700991 1136 (2011-09-08) 9953 (2099-12-31) ALL MARKETS
LAM3200 33700988 8001 (1980-01-01) 9953 (2099-12-31) ALL MARKETS
LAM3300 33700987 1129 (2011-07-21) 9953 (2099-12-31) ALL MARKETS
LAM3202 33700986 1129 (2011-07-21) 9953 (2099-12-31) ALL MARKETS
FHP3147X 33700985 1128 (2011-07-11) 9953 (2099-12-31) FRANCE
TKC02SS 33700982 1123 (2011-06-07) 1321 (2013-05-20) U.K.
FPP649XL 33700970 1122 (2011-05-30) 1321 (2013-05-20) FRANCE
FPP8291X 33700964 1125 (2011-06-21) 9953 (2099-12-31) NORDICS
FPP6091X 33700963 1126 (2011-06-27) 9953 (2099-12-31) NORDICS
FHP629XL 33700945 1115 (2011-04-13) 9953 (2099-12-31) ALL MARKETS
FPP6020X 33700944 1102 (2011-01-11) 9953 (2099-12-31) TURKEY
FPP6090X 33700943 1102 (2011-01-12) 9953 (2099-12-31) TURKEY
HOP2060X 33700942 1103 (2011-01-21) 1321 (2013-05-20) TURKEY
HOP4060X 33700941 1103 (2011-01-21) 9953 (2099-12-31) TURKEY
HOC1060X 33700940 1103 (2011-01-21) 9953 (2099-12-31) ALL MARKETS
HOC706NX 33700921 1001 (2010-01-04) 9953 (2099-12-31) ALL MARKETS
HOC706X 33700905 1028 (2010-07-14) 9953 (2099-12-31) U.K.
ABX501X1 33700904 1045 (2010-11-09) 1321 (2013-05-20) ALL MARKETS
FHP6481X 33700901 1105 (2011-02-05) 9953 (2099-12-31) FRANCE
FPP629X 33700899 1044 (2010-11-05) 9953 (2099-12-31) ALL MARKETS
FPP6021XOS 33700897 1139 (2011-09-28) 1251 (2012-12-19) ALL MARKETS
FPP829XL 33700892 1103 (2011-01-21) 9953 (2099-12-31) ALL MARKETS
FPP6461X 33700888 1038 (2010-09-22) 9953 (2099-12-31) ALL MARKETS
FPP6461N 33700887 1106 (2011-02-08) 9953 (2099-12-31) ALL MARKETS
FPP5021W 33700886 1101 (2011-01-07) 9953 (2099-12-31) ALL MARKETS
FPP5021N 33700885 1044 (2010-11-01) 9953 (2099-12-31) ALL MARKETS
FPP6021W 33700884 1102 (2011-01-13) 9953 (2099-12-31) ALL MARKETS
FPP5021X 33700883 1038 (2010-09-21) 9953 (2099-12-31) ALL MARKETS
FPP649X 33700882 1045 (2010-11-08) 9953 (2099-12-31) ALL MARKETS
FPP649N 33700881 1104 (2011-01-24) 9953 (2099-12-31) ALL MARKETS
FPP649W 33700880 1104 (2011-01-24) 9953 (2099-12-31) ALL MARKETS
FPP609XL 33700878 1103 (2011-01-20) 9953 (2099-12-31) ALL MARKETS
FPP609X 33700877 1041 (2010-10-15) 9953 (2099-12-31) ALL MARKETS
FPP60211X 33700876 1045 (2010-11-09) 9953 (2099-12-31) ALL MARKETS
FPP6481X 33700875 1102 (2011-01-10) 9953 (2099-12-31) ALL MARKETS
FPP6481W 33700873 1109 (2011-03-01) 1321 (2013-05-20) FRANCE
FPP6461W 33700871 1103 (2011-01-21) 9953 (2099-12-31) FRANCE
FPP6021N 33700870 1040 (2010-10-06) 9953 (2099-12-31) ALL MARKETS
FPP6021X 33700869 1038 (2010-09-21) 9953 (2099-12-31) ALL MARKETS
FVP7021XDISP 33700863 1042 (2010-10-19) 9953 (2099-12-31) ALL MARKETS
FVP7481X 33700862 1108 (2011-02-21) 9953 (2099-12-31) ALL MARKETS
FVP729XDISP 33700861 1104 (2011-01-27) 9953 (2099-12-31) ALL MARKETS
FVH7031X 33700856 1101 (2011-01-03) 9953 (2099-12-31) ALL MARKETS
FL05021X 33700855 1041 (2010-10-16) 9953 (2099-12-31) ALL MARKETS
FL5021N 33700853 1103 (2011-01-17) 9953 (2099-12-31) ALL MARKETS
FHP829X 33700852 1108 (2011-02-26) 1321 (2013-05-20) ALL MARKETS
FHP60311X 33700851 1103 (2011-01-17) 9953 (2099-12-31) ALL MARKETS
FHP6031X 33700850 1050 (2010-12-14) 9953 (2099-12-31) ALL MARKETS
FHP603XL 33700849 1114 (2011-04-06) 9953 (2099-12-31) ALL MARKETS
FHP609X 33700848 1103 (2011-01-18) 9953 (2099-12-31) ALL MARKETS
FHP6461X 33700846 1115 (2011-04-11) 9953 (2099-12-31) ALL MARKETS
